Bow Waves & Breathers: Tech and Technique for Deep Water Fording
Last resort only. Crossing moving water is risky; turning back is usually the best call. When there’s truly no alternative, understanding bow waves, snorkels, and extended differential breathers helps reduce (not remove) the danger. Here’s the physics and a calm, step-by-step process.
Shop: 4×4 snorkels, diff breather kits, recovery rigging & dry bags.

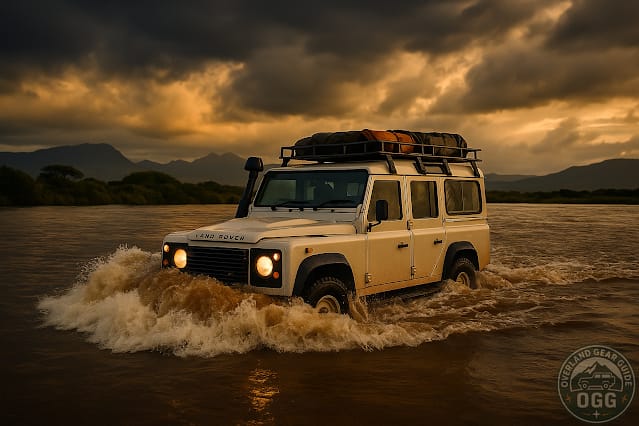

Bow wave 101: why it helps
The goal
- A controlled bow wave pushes water ahead, creating a temporary trough at the grille so the waterline at the engine bay is lower than ambient.
- That reduces splash into the intake/electrics and lowers hydrodynamic drag.
How to make a good bow wave
- Enter slowly, then hold a steady walking pace (no throttle spikes).
- Wave should just kiss the bumper. If it breaks over the bonnet, you’re too fast or too deep — abort.
- Maintain constant speed; shifting or braking collapses the wave.
Snorkels: what they do (and don’t)
- Do: Raise the air intake above the bow wave and dust; reduce hydrolock risk from splash/brief immersion.
- Don’t: Make the rig waterproof. Water can still enter doors, vents, wiring, breathers, or exhaust if stalled.
- Sealing matters: Seal the whole intake tract (airbox joints/drains) per kit instructions; pressure-test after installation.
Extended differential breathers: tiny parts, big save
Why extend breathers
- Hot driveline parts cool rapidly in water and inhale through breathers.
- If submerged, they inhale water → milky oil, bearing wear, costly rebuilds.
Best practice
- Route hoses to a high, dry point in the engine bay with one-way filters.
- After deep crossings, inspect fluids for milkiness within 24–48 hours.
Vehicle prep (5–10 minutes)
- Assess first: Depth, current, entry/exit (see Parts 1–2). Turn back if in doubt.
- Snorkel/intake: Inspect clamps and seals; ensure airbox drains are properly sealed per kit.
- Electrics: Lights off to avoid thermal shock; check winch controller/isolator.
- Recovery staging: Tree saver/strap accessible, soft shackles on, line damper ready.
- Cabin setup: 4L selected; 1st low (or auto manual mode). Disable auto stop/start.
Step-by-step fording (single vehicle)
- Line up square to the entry; confirm spotter position and comms.
- Enter slow, then hold a steady walking pace to build the wave. Eyes on the exit, not the bonnet.
- Steer gently with minimal inputs; avoid clutch riding and rev spikes.
- Fan spray: If your platform allows, briefly disable fan to prevent water misting the bay.
- Commit to the exit. Do not stop midstream. If the wave breaks over the bonnet or you’re pushed, reverse out along your entry if safe.
Depth, time & hard abort rules
- Depth: Stay below the manufacturer wading limit even with a snorkel; ECU/diff heights still govern.
- Time: Minimise immersion — long soaks cool drivelines and invite water ingress.
- Abort if: Water reaches bonnet vents; the wave collapses; lateral push increases; traction or exit visibility is lost.
Post-crossing care
- Brake dry with gentle taps on firm ground.
- Inspect oils (diffs/gearbox/transfer) for milkiness after the day’s driving.
- Clean & lube winch, shackles and rigging; rinse grit from boards/straps.
Recommended gear for deep water work
4×4 Snorkels & Wading Kits
Raise intake and seal the intake tract to reduce hydrolock risk.
Extended Diff Breather Kit
Route breathers high and dry to keep water out of oils.
ARB Recovery Kit
Quality rigging for controlled pulls on slick exits.
Roll-Top Dry Bag
Keep electronics and warm layers dry while you scout.
Disclaimer: Conditions change rapidly during storms and floods. If in doubt, do not enter water. Some links are affiliate links that help fund hands-on testing at no extra cost to you.
